Product ZoneBattery Chargers : Ni-MH Battery Chargers >
BC-0807S

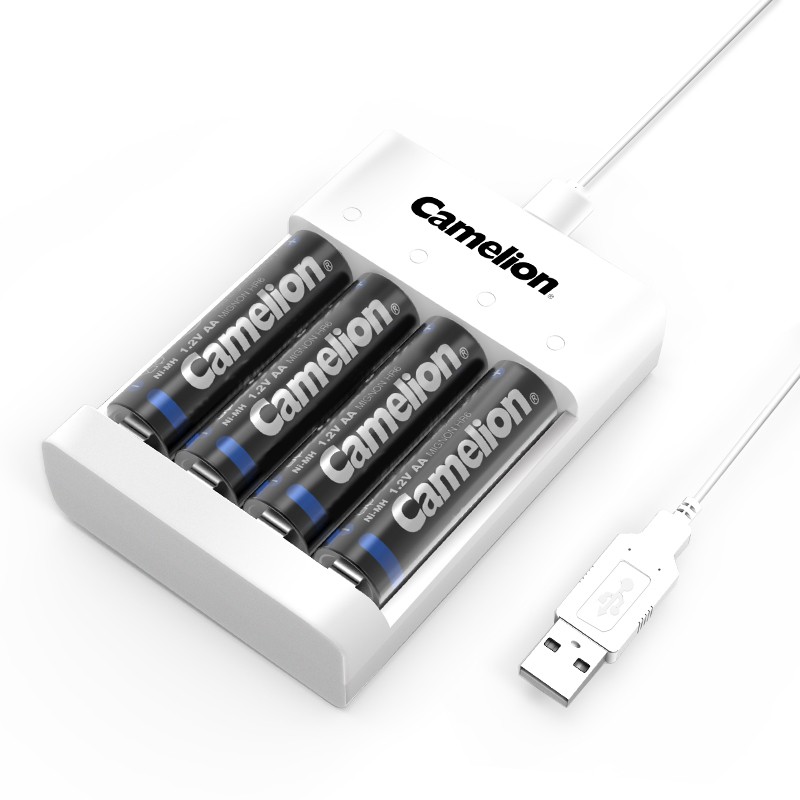

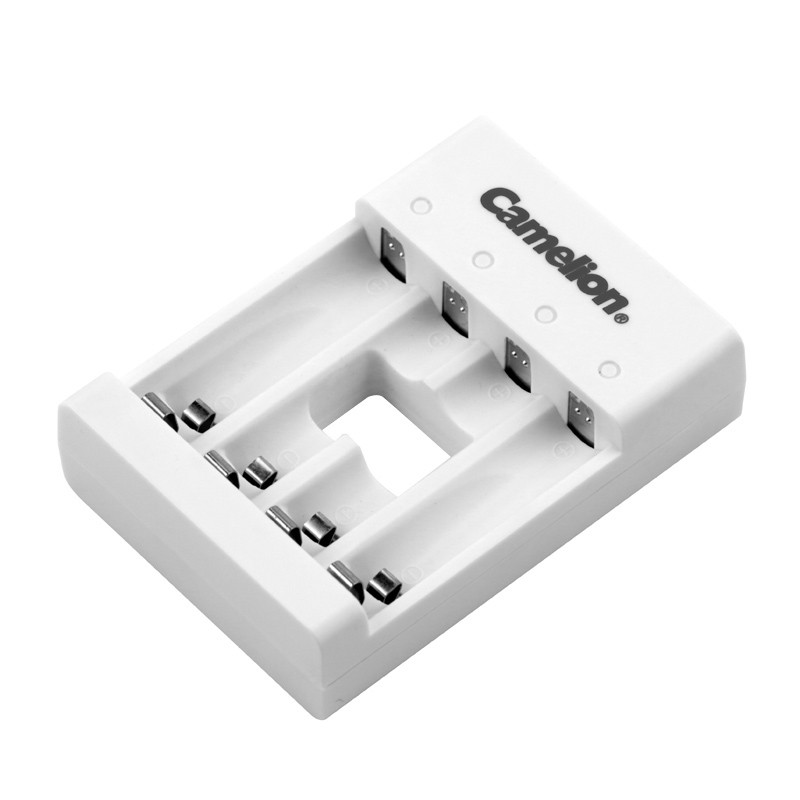

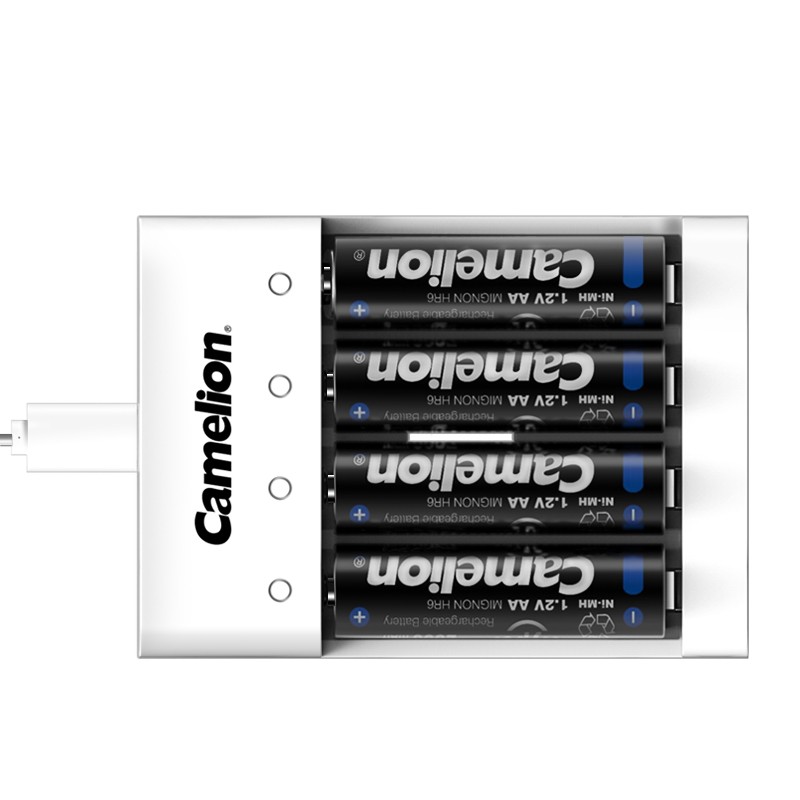

BC-0807S USB Battery Charger is designed to charge 1 to 4 pcs Ni-Mh/Ni-Cd AA/AAA rechargeable batteries. The 4 independent charging channels are allowed to charge respectively or with optional combinnation of AA and AAA batteries.

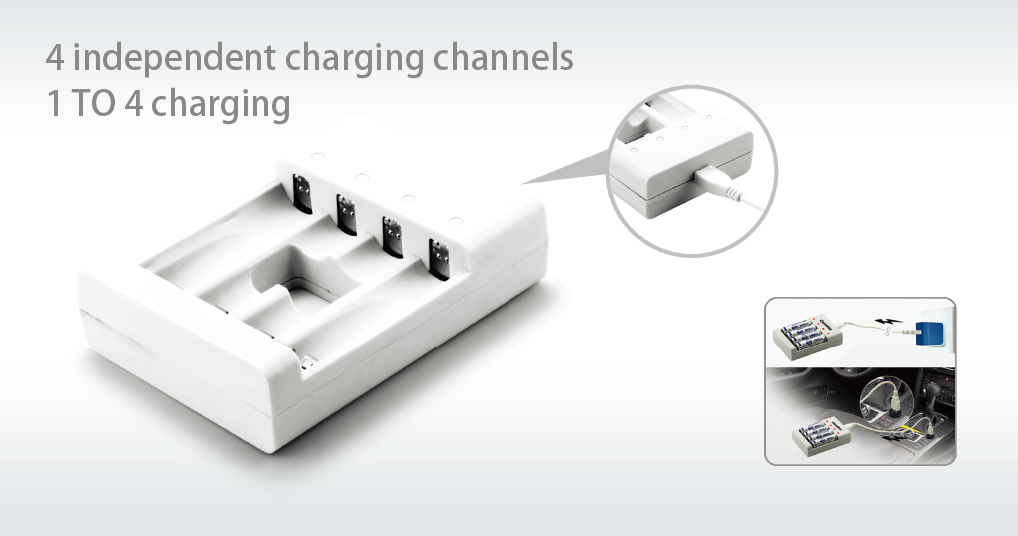

 ● 4 independent charging channels

       Allowing single charging or with optional combination


 ● Reverse Polarity Protection:

      Specially designed compartment to prevent incorrect batteries

      polarity connection, protecting both charger and batteries


 ● LED Indicators:

      4 Red LED constantly on when charging

Battery Type Charging Time
Ni-MH AA 2700mAh 17 hrs
Ni-MH AA 2300mAh 15 hrs
Ni-MH AA 2000mAh 14 hrs
Ni-MH AAA 1100mAh 14 hrs
Ni-MH AAA 800mAh 11 hrs
Ni-Cd AA 1000mAh 6.5 hrs
Ni-Cd AAA 300mAh 3.5 hrs

*The charging time varies according to different batteries. For a more complete listing

please visit  http://www.camelionbattery.com/en/about.aspx?TypeId=10932





    Input: 5V  1A
    Output: 4 x 1.4V
    Charging Current: AA: 0.2A
                                   AAA: 0.1A
