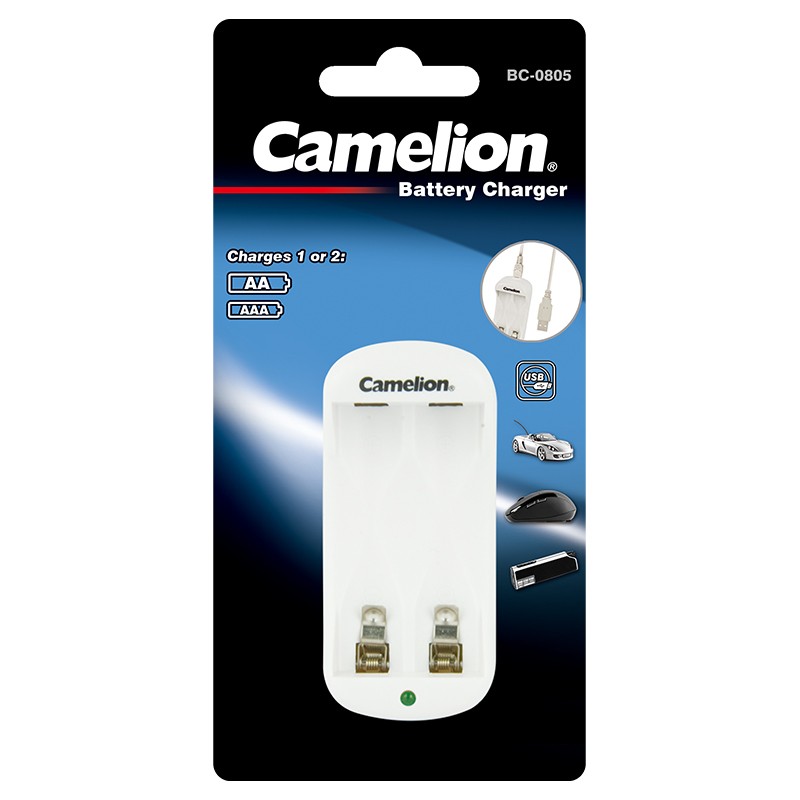

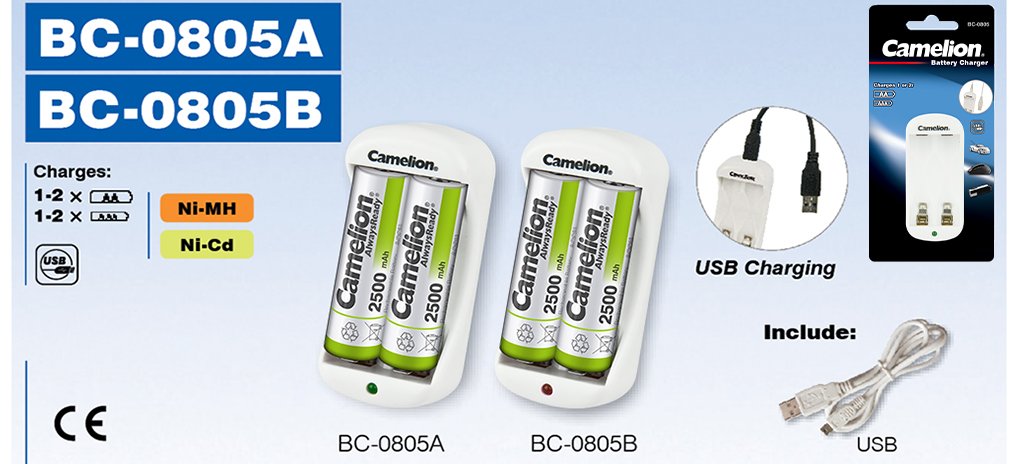

BC-0805A / BC-0805B


These new compact light USB charger are designed for travel. It is ideal for powering up NiMH and NiCd AA/AAA batteries via any USB

source whether at home or away in a trip, this handy USB battery charger delivers reliable performance.

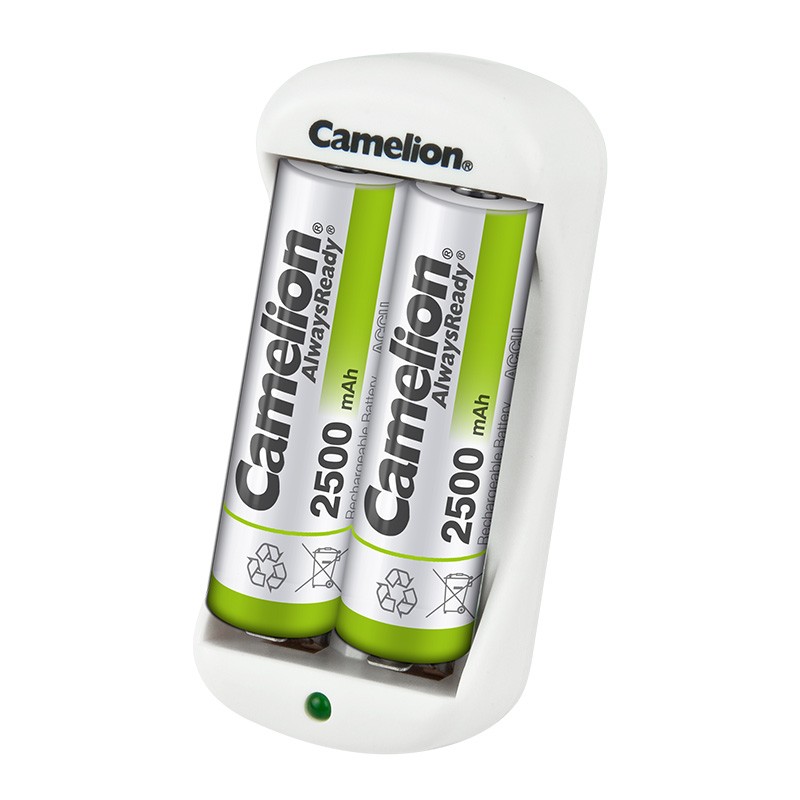

BC-0805A

    ● Charges 1 or 2 pcs Ni-MH or Ni-Cd AA/AAA batteries

    ● Reverse Polarity Protection

    ● Safety Timer Control  (12 hours)

    ● -△V Cut Off The high sensitivity electronic circuit stops

charging, once it detects the batteries are fully charged
    ● Green LED Indicator

      Flashing: Charging in progress ;Solid on:Fully-charged

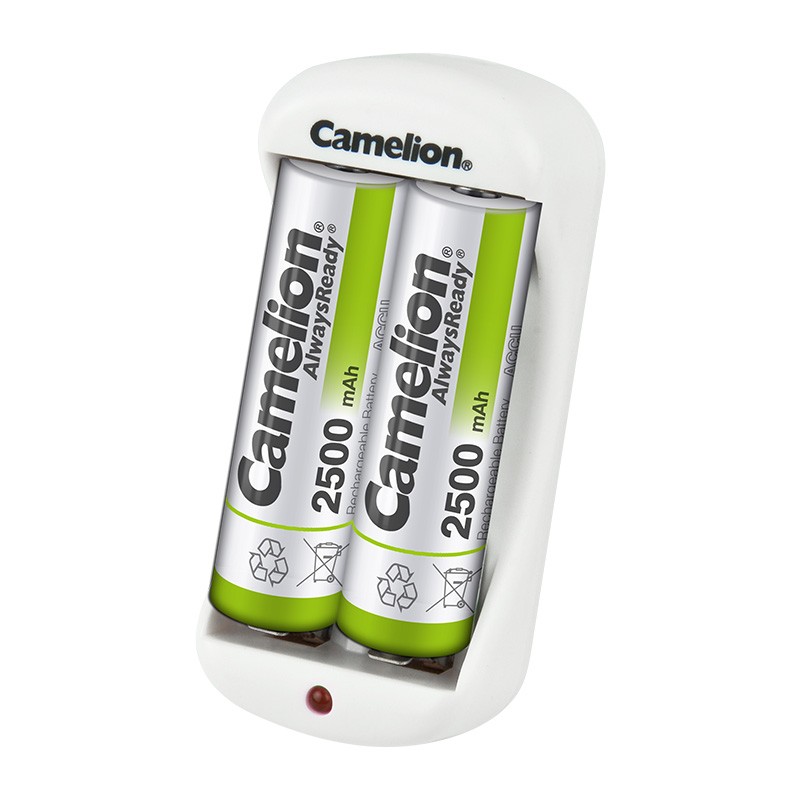

BC-0805B
    ● Charges 2 pcs Ni-MH or Ni-Cd AA/AAA batteries

    ● Reverse Polarity Protection

    ● Red LED Indicator

      Solid on: Charging or Charge Completed

Type of Battery Charging time (Appr.)
  BC-0805A BC-0805B
Ni-MH AA 2300mAh 11 h 21.5 h
Ni-MH AA 2000mAh 9.5 h 19 h
Ni-MH AAA 1100mAh 4.5 h 10 h
Ni-MH AAA 800mAh  3 h 7.5 h
Ni-Cd AA 1000mAh  4 h 9.5 h
Ni-Cd AAA 300mAh 1.5 h 2.5 h




BC-0805A
    Input: 5V  500mA
    Output: 2 x (1.4V  300mA) AA/AAA size
    Timer Control:12 hours


BC-0805B
    Input: 5V  500mA
    Output: 2.8V  150mA AA/AAA size
