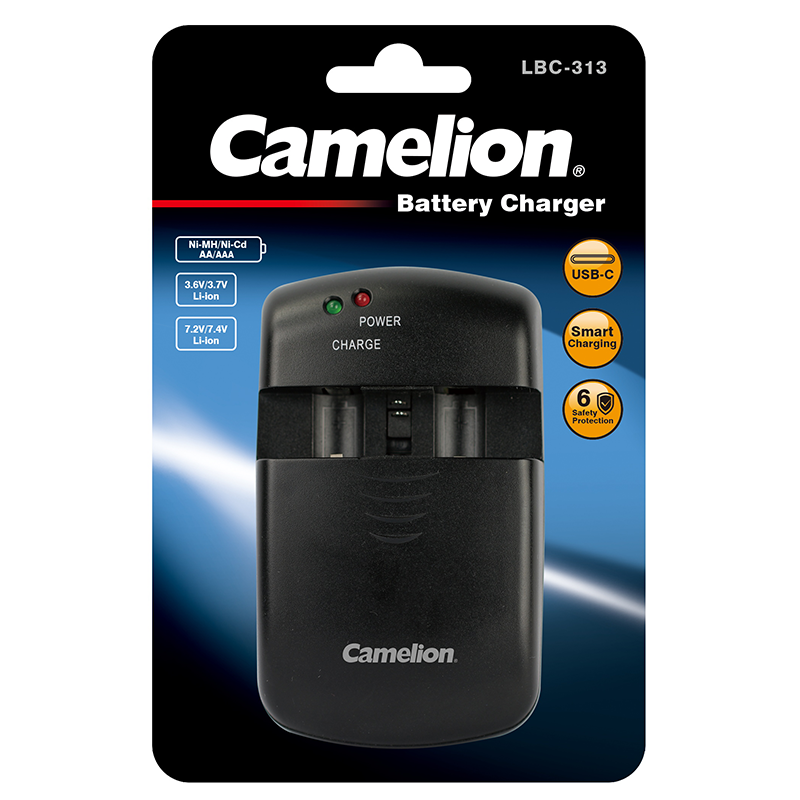

LBC-313

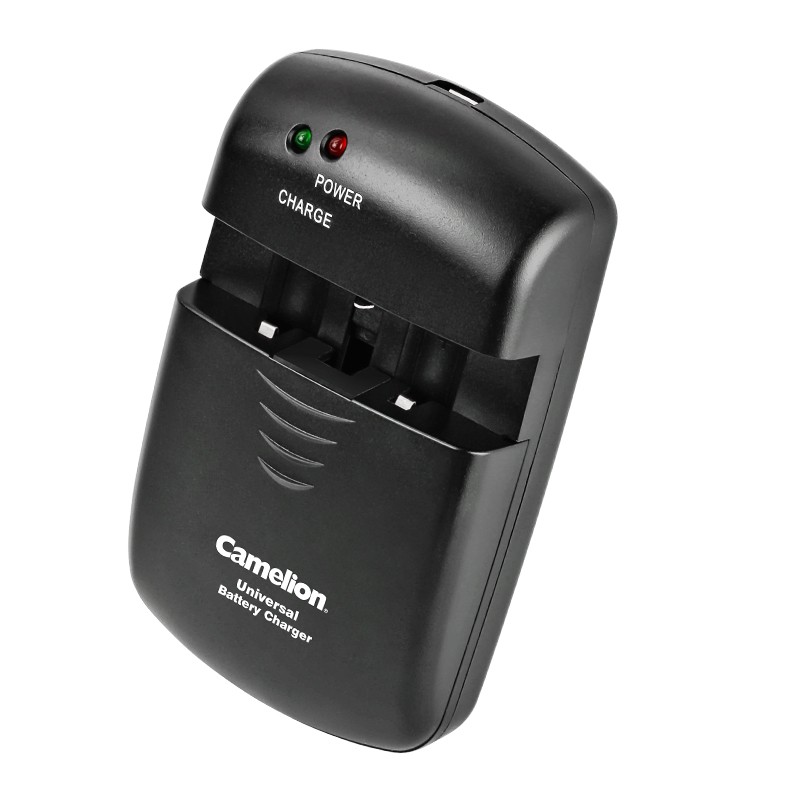

This intelligent USB Charger is designed for a variety of rechargeable Li-ion batteries with voltages of  3.6V / 3.7V / 7.2V / 7.4V  or 1-2 PCS Ni-MH / Ni-Cd AA / AAA batteries. It’s the best power companion for digital camera, camcorder, mobile phone and LED flashlight users.






● Wide Compatibility

Compatible with 3.6V / 3.7V / 7.2V / 7.4V Rechargeable Li-ion
and 1.2V Ni-MH / Ni-Cd AA/AAA rechargeable batteries


 Smart Charging
Automatic battery type recognition; smart polarity & accurate
charging modes paring; Timer control (5hrs for Ni-MH/Cd or
10hrs for Li-ion)


6 levels of Safety Protection
△V cut-off, reverse polarity protection, short-circuit protection,
over current protection, overcharging protection, defective and non-rechargeable battery detection.


Battery Type Battery Capacity Charging time (Appr.)
NP-30 3.7V Lithium-ion 1000 mAh 2.0 h
CGR-320 7.4V Lithium-ion 3200 mAh 5.5 h
14500 Lithium-ion 1000 mAh 2.0 h
AA Ni-MH 1500 mAh 2.5 h
AAA Ni-MH 800 mAh 1.5h
AA Ni-Cd 1000 mAh 2.0 h
AAA Ni-Cd 300 mAh 30 min


Green LED flashes

(1 time/s)

Charging in progress
Solid Green LED
Fully charged:
Red and Green LED Flashing:

Charging error and stop charging after a few seconds






    Input:     DC 5V    1A
    Output:   2 x (1.4V  0.7A) (1.2V Ni-MH/Ni-Cd Battery)
                  4.2V  0.7A  (3.6V/ 3.7V Li-ion Battery)
                  8.4V  0.45A (7.2V/ 7.4V Li-ion Battery)
