Product ZonePower Supplies : Wall Chargers >

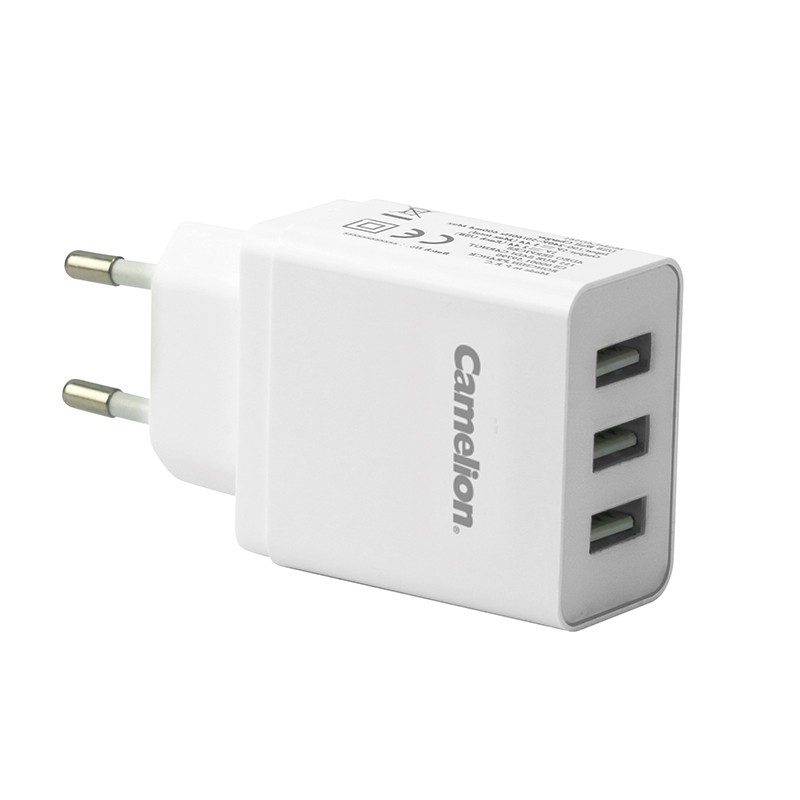

AD585A







● Short Circuit Protection
Damage to the device is prevented in case a short circuit occurs. The

unit will quickly recover normal operation once the short circuit is removed
● Over Current Protection
The output shall hiccup when the over currents applied to the output rail, and

shall be self-recovery when the fault condition is removed
● Full-Speed Charging
3 Ports (2.4A for each) could max up to a 3.4A output, available for charging

three devices simultaneously
● Universal and Compact
Lightweight and considerate design for multiple conditions and needs





Input: 100-240V ~ 50/60Hz 600mA Max

Output: 5.0V 3.4A 17.0W (Max total)
                    5.0V 2.4A 12.0W (Each USB)
Dimensions: 88 x 45 x 26 mm (EU Plug)
                            68 x 45 x 26 mm (US Plug)
 ●Weight: 65g±3g (EU Plug)
                   55g±3g (US Plug)
