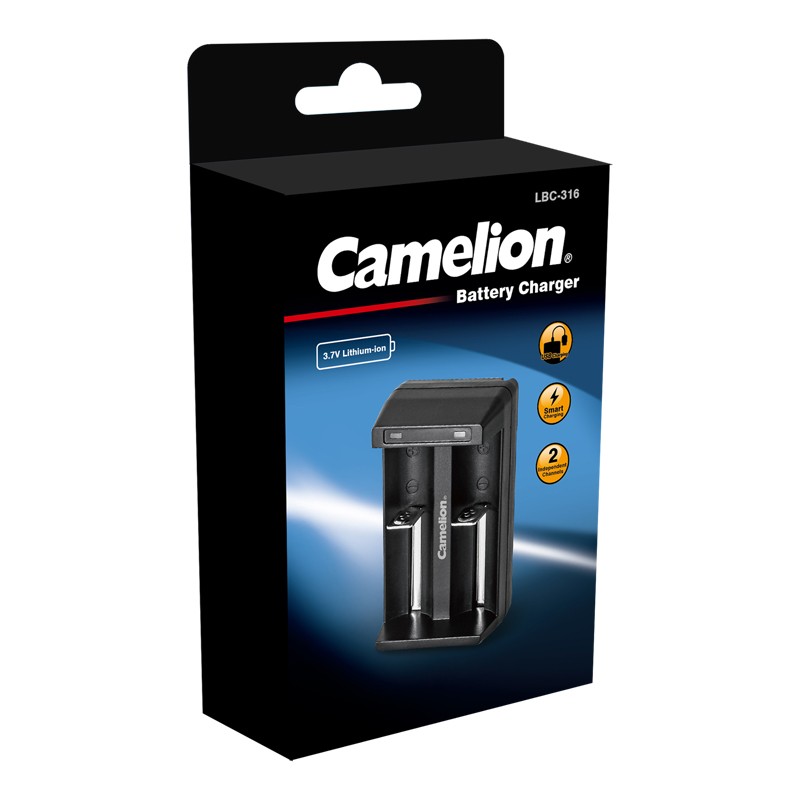

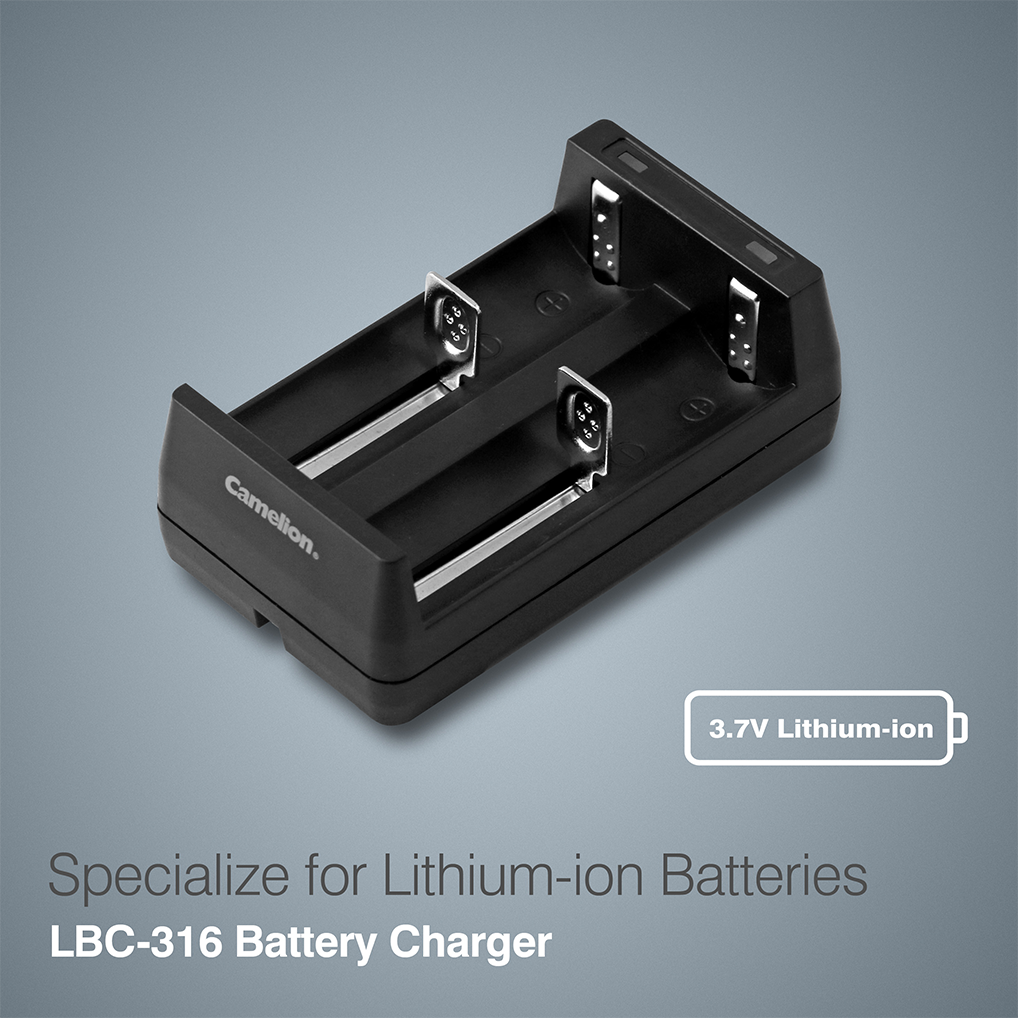

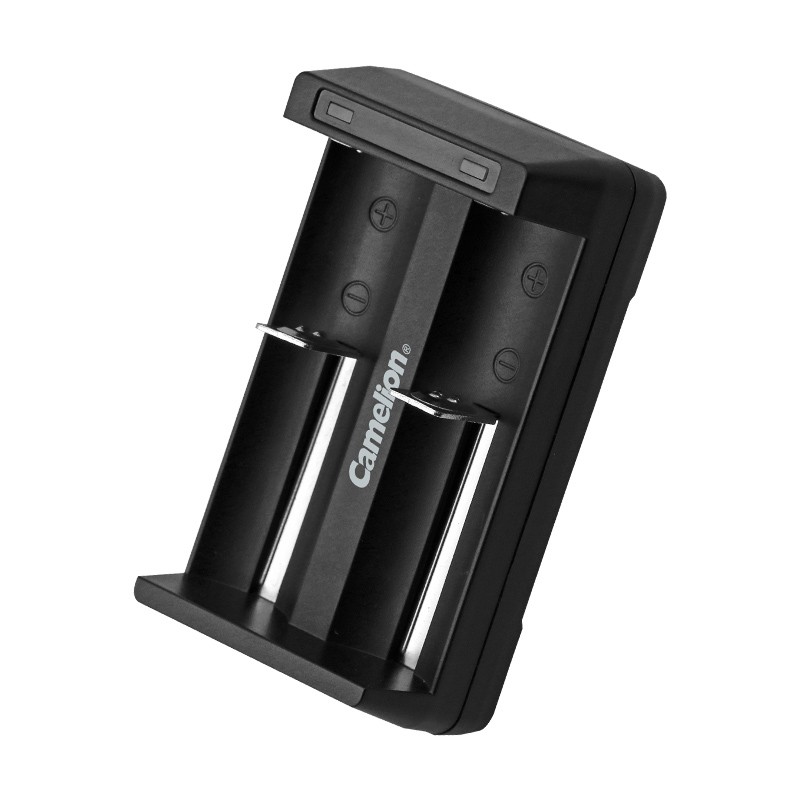

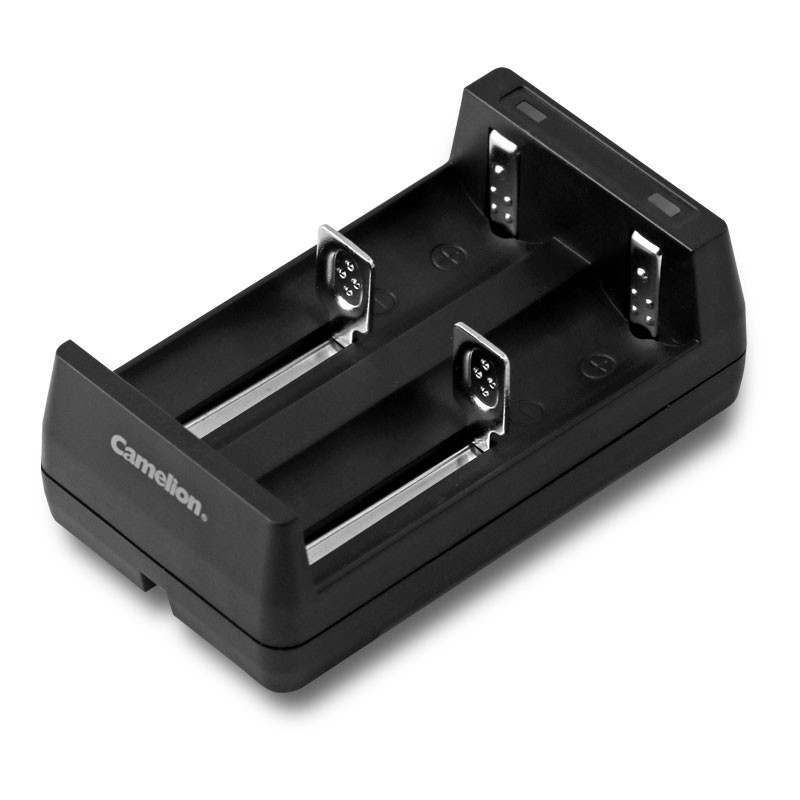

LBC-316







 ● Smart Charging - detects the battery status and activates deep discharged batteries. As well the multiple charging protections functions effectively prevent overcharge and undercharge, ensure charging safety and improve the cycle life of the battery.

 ● Fast Charging – DC 5V, 2A input two independent slots and charging channels
 ● Over Charging Protection - The battery's maximum charging voltage

is accurately restricted to avoid overcharging of the battery
 ● Short Circuit Protection – warning from LED red light 9flashing) and stops charging




Battery Type Battery Capacity Charging time (Appr.)
26650 Lithium-ion 5000 mAh 6.0 h
18650 Lithium-ion 2500 mAh 3.0 h
18650 Lithium-ion 2000 mAh 2.5 h
18500 Lithium-ion 1500 mAh  3.5 h
17335 Lithium-ion 700 mAh 100 min





Input:Micro USB DC-5V, 2A

Output:

Max Voltage: 4.2V±0.05V

Charging Current: 1000mA (The length of the battery≥57mm)

   Suitable size of Lithium-ion batteries: 17335 - 26700
