Product ZoneBattery Chargers : Li-ion Battery Chargers >

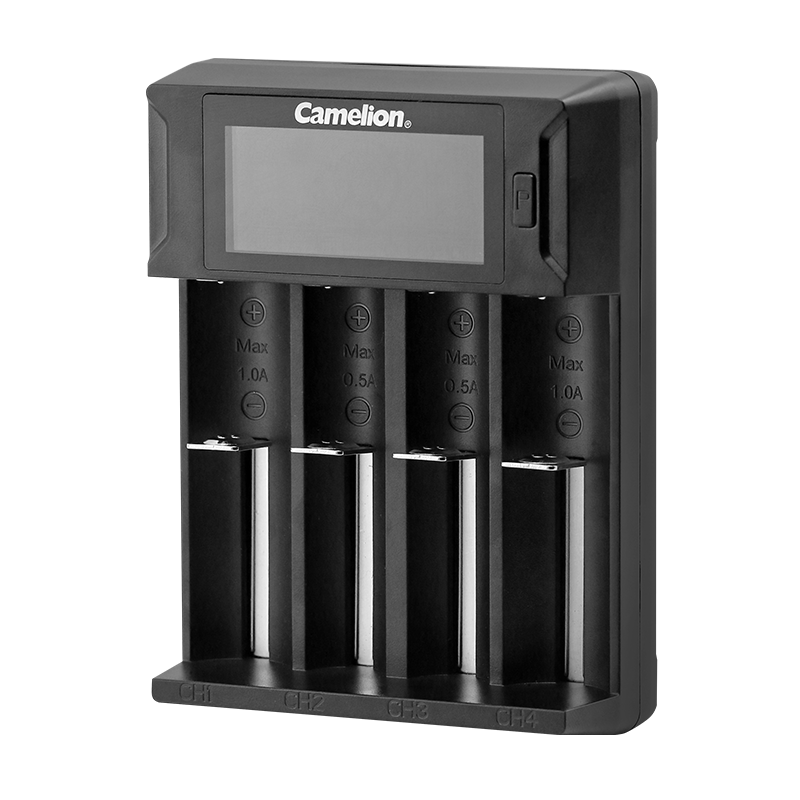

LBC-318


This Camelion universal battery charger is a battery charger that’s capable of charging 1.2V size AAAA, AAA, AA, SC, C, D Ni-Mh or Ni-Cd

rechargeable batteries, also this charger can charge 3.6V or 3.7V cylindrical Li-ion batteries of size (10400 to 32650).






 ● Charges size NiMh or NiCd rechargeable batteries

 ● Charges 3.6V & 3.7V cylindrical Li-ion batteries size 10400 to 32650

 ● Integrated MCU controlled independent charging channels and identify

      battery types and selection of appropriate charging modes automatically.

 ● LCD display, showing charge progress, amount of capacity charged, and

      charging current.

 ● Smart detection, automatically select charging current.

 ● Capable of activating 0 volt batteries.

 ● Over charging, short circuit, reverse polarity and over charging time protections.

 ●  Attached USB on the product.



    Input: 5V, 2A

    Charging Voltage: 1.48V, 4.2V

    Charging Current :1000mA / 500mA

    Cut-off current (at CV mode) : < 100mA

    Standby current: less than 25mA

    Weight: 172g
